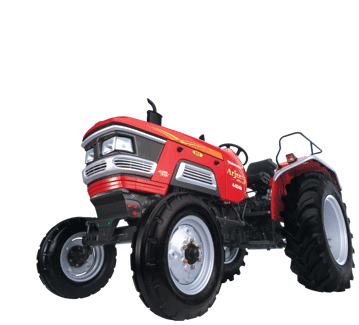

Arjun 445 DI

  • ENGINE SPECIFICATION
Model NE 342
HP 42 hp Category
Type Water cooled four stroke, direct injection diesel engine.
No. of Cylinders Three
Bore and Stroke (mm) 94 / 115
Displacement 2394 cc
Rated Engine Speed 2100
Max Torque 151 Nm @ 1150 to 1400 rpm
Air Cleaner Dry type
Cooling System Water cooling
CLUTCH Type Dry single friction plate
Size



  • TRANSMISSION SPECIFICATION
GEAR BOX SPECIFICATION
Type Mechanical, Constant mesh.
No of speeds 8 Forward / 2 Reverse
Speed Range Forward 3.0 to 30.2
Reverse 4.54 to 13.0
DIFFERENTIAL LOCK SPECIFICATION
Dog clutch type
POWER TAKE OFF SPECIFICATION
Independent, 6 Splines, Hand operated
Selector lever for 540 rpm.
BRAKE SPECIFICATION
Size
Main Mechanical, Disc type, Oil immerged brakes
Park Parking brake for additional safety.
STEERING
Mechanical, Re-circulating ball type
HYDRAULICS SPECIFICATION
Lifting capacity 1600 kgs
3 Point Linkage Cat II
Position Control & Draft Control Automatic depth and Draft control
ELECTRICALS SPECIFICATION
Battery 75 AH
Starter Motor 12 V, Self starter (Solenoid switch operated)
Alternator 12 V, In built Regulator.
Horn 12 V DC
INSTRUMENTATION SPECIFICATION
Hour Meter, Oil guage, temperature guage, RPM Meter, indicator Switch for high beam.
TYRE SPECIFICATION
Front 6.00-16, 8PR
Rear 13.6 - 28, 12 PR
DIMENSIONS SPECIFICATION (in mm)
Overall Length 3750
Overall Width 1845
Overall Height 2175
Wheel Base 2020
Min.ground Clearance 405
Standard Tractor Weight (kg) 2250
Turning Radius (m) 3.2
CAPACITIES SPECIFICATION
Fuel tank 65 lit
Engine sump 7.5 lit
Transmission 37 lit
Hydraulic 13.5 lit
SPECIAL FEATURES
Neutral Safety Switch
Removable Front weights
Removable rear wheel weights
Sliding Seat with Safety belt
7-Pin Trailer light socket
