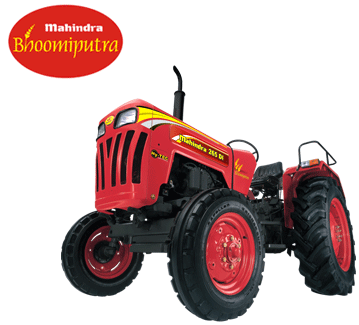

Bhoomiputra 265 DI



ENGINE SPECIFICATION>

ModelMDI 1765
HP30 HP
TypeWater cooled four stroke, Direct injection diesel engine.
No. of CylindersThree
Bore and Stroke (mm)88.9 / 101.6
Displacement1892 cc
Rated Engine Speed2600
Max Torque121 Nm @ 1400 to 1600 rpm
Air CleanerOil bath type with cyclonic pre cleaner
Cooling SystemWater cooled
CLUTCHTypeDiaphragm clutch cover assembly with Dry friction plate
Size11"



TRANSMISSION SPECIFICATION >

GEAR BOX SPECIFICATION
Type
Sliding mesh gear.
No of speeds
8 Forward / 2 Reverse
Speed Range
Forward
2.74 – 29.25
Reverse
4.19 – 12.20
DIFFERENTIAL LOCK SPECIFICATION
Dog clutch type
POWER TAKE OFF SPECIFICATION
Independent, 6 Splines, Hand operated
Selector lever for 540 rpm.
BRAKE SPECIFICATION
Size6.5"
 Mechanical, Dry disc brakes.
 Parking brake for additional safety.
STEERING
Mechanical, Re-circulating ball type
HYDRAULICS SPECIFICATION
Lifting capacity1000 kgs
3 Point LinkageCat II
Position Control & Draft ControlAutomatic depth and Draft control
ELECTRICALS SPECIFICATION
Battery75 AH
Starter Motor12 V, Self starter (Solenoid switch operated)
Alternator12 V, In built Regulator.
Horn12 V DC
INSTRUMENTATION SPECIFICATION
Hour Meter, Oil guage, temperature guage, RPM Meter, indicator Switch for high beam.
TYRE SPECIFICATION
Front6.00-16, 8PR
Rear12.4- 28, 12 PR
DIMENSIONS SPECIFICATION (in mm)
Overall Length3200
Overall Width1630
Overall HeightAt top of silencer :- 2020
Wheel Base1835
Min.ground Clearance325
Standard Tractor Weight (kg)1715
Turning Radius (m)3.6
CAPACITIES SPECIFICATION
Fuel tank45 lit
Engine sump7.6 lit
Transmission20 lit
Hydraulic11.5 lit
SPECIAL FEATURES
Removable front weights
Removable rear wheel weights
Sliding seat
7-Pin Trailer light socket
