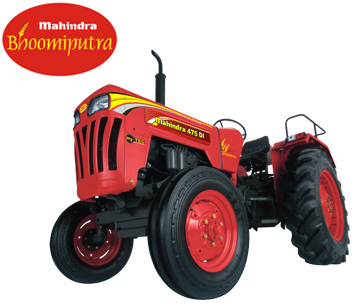

Bhoomiputra 475 DI

ENGINE SPECIFICATION>

ModelMDI 2385
HP42 hp Category
TypeWater cooled four stroke, Direct injection diesel engine.
No. of CylindersFour
Bore and Stroke (mm)88.9 / 101.6
Displacement2523 cc
Rated Engine Speed2300
Max Torque140 Nm @ 1200 to 1400 rpm
Air CleanerOil bath type with cyclonic pre cleaner
Cooling SystemWater cooled
CLUTCHTypeDiaphragm clutch cover assembly with Dry friction plate
Size11"



TRANSMISSION SPECIFICATION>

GEAR BOX SPECIFICATION
TypePartial constant mesh.
No of speeds8 Forward / 2 Reverse
Speed RangeForward2.74 – 30.48
Reverse4.16 – 12.42
DIFFERENTIAL LOCK SPECIFICATION
Dog clutch type
POWER TAKE OFF SPECIFICATION
Independent, 6 Splines, Hand operated
Selector lever for 540 rpm.
BRAKE SPECIFICATION
Size6.5"
 Mechanical, Dry disc brakes.
 Parking brake for additional safety.
STEERING
Mechanical, Re-circulating ball type
HYDRAULICS SPECIFICATION
Lifting capacity1000 kgs
3 Point LinkageCat II
Position Control & Draft ControlAutomatic depth and Draft control
ELECTRICALS SPECIFICATION
Battery75 AH
Starter Motor12 V, Self starter (Solenoid switch operated)
Alternator12 V, In built Regulator.
Horn12 V DC
INSTRUMENTATION SPECIFICATION
Hour Meter, Oil guage, temperature guage, RPM Meter, indicator Switch for high beam.
TYRE SPECIFICATION
Front6.00-16, 8PR
Rear12.6- 28, 12 PR
DIMENSIONS SPECIFICATION (in mm)
Overall Length3260
Overall Width1625
Overall HeightAt top of silencer :- 2020
Wheel Base1910
Min.ground Clearance350
Standard Tractor Weight (kg)1730
Turning Radius (m)3.5
CAPACITIES SPECIFICATION
Fuel tank45 lit
Engine sump7.6 lit
Transmission20 lit
Hydraulic11.5 lit
SPECIAL FEATURES
Removable front weights
Removable rear wheel weights
Sliding seat
7-Pin Trailer light socket
