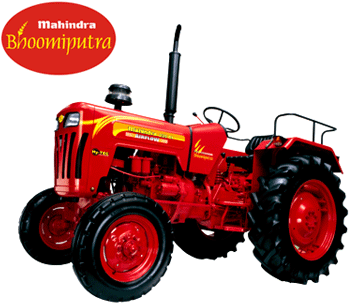

Bhoomiputra 235 DI



ENGINE SPECIFICATION>

ModelMACE 1735
HP25 hp Category
TypeAir-cooled four stroke, Direct injection diesel engine.
No. of CylindersOne
Bore and Stroke (mm)127/137
Displacement1735 cc
Rated Engine Speed1650
Max Torque113 Nm @ 1000 to 1200 rpm
Air CleanerOil bath type with Cyclonic pre cleaner.
Cooling SystemAir cooling by Blsower fan.
CLUTCHTypeDry
Size10"



TRANSMISSION SPECIFICATION>

GEAR BOX SPECIFICATION
Type
Sliding mesh.
No of speeds
8 Forward / 2 Reverse
Speed Range
Forward
4.1 to 31.2
Reverse
6.4 to 16.6
DIFFERENTIAL LOCK SPECIFICATION
Dog clutch type
POWER TAKE OFF SPECIFICATION
Independent, 6 Splines, Hand operated
Selector lever for 540 rpm.
BRAKE SPECIFICATION
Size6.5"
 Mechanical, Dry disc brakes.
 Parking brake for additional safety.
STEERING
Mechanical, Re-circulating ball type
HYDRAULICS SPECIFICATION
Lifting capacity1000 kgs
3 Point LinkageCat II
Position Control & Draft ControlAutomatic depth and Draft control
ELECTRICALS SPECIFICATION
Battery75 AH
Starter Motor12 V, Self starter (Solenoid switch operated)
Alternator12 V, In built Regulator.
Horn12 V DC
INSTRUMENTATION SPECIFICATION
Hour Meter, Oil guage, temperature guage, RPM Meter, indicator Switch for high beam.
TYRE SPECIFICATION
Front6.00-16, 8PR
Rear12.4- 28, 12 PR
DIMENSIONS SPECIFICATION (in mm)
Overall Length3120
Overall Width1700
Overall HeightAt top of silencer :- 2190
Wheel Base1900
Min.ground Clearance355
Standard Tractor Weight (kg)1820
Turning Radius (m)3.2
CAPACITIES SPECIFICATION
Fuel tank40 lit
Engine sump5 lit
Transmission20 lit
Hydraulic11.5 lit
SPECIAL FEATURES
Removable front weights
Removable rear wheel weights
Sliding seat
7-Pin Trailer light socket
